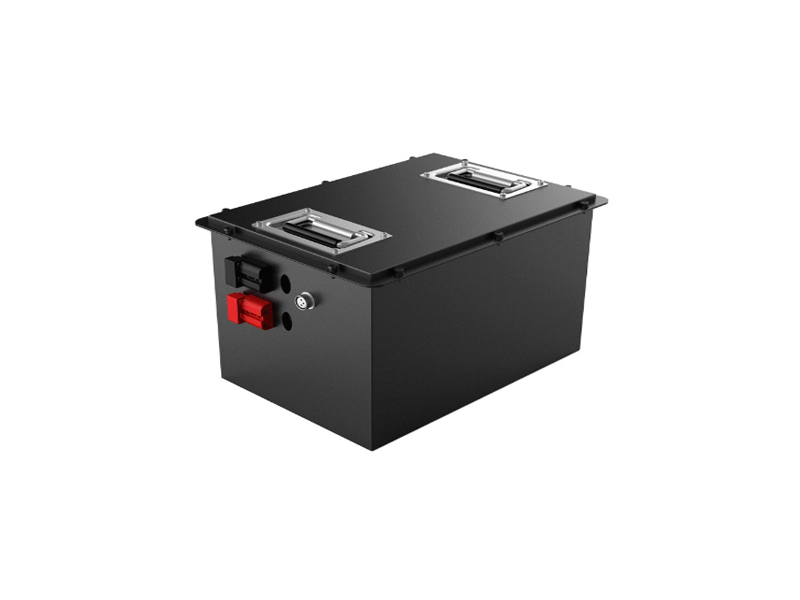

High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | JHOTA |
| 最小注文数量 | 5 |
| 価格 | 交渉可能 |
| パッケージの詳細 | カートン |
| 受渡し時間 | 20〜30日 |
| 支払条件 | T/T |
| 供給の能力 | 500pcs |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 製品名 | AGV車両バッテリー | 公称電圧 | 48V |
|---|---|---|---|
| 公称容量 | 120AH | サイクルライフ | 2000回 |
| 保証 | 5年 | ||
| ハイライト | 48V LiFePo4 battery for AGV,120Ah AGV lithium battery,High-capacity EV lithium battery |
||
製品の説明
Specification
| Item | Parameter |
|---|---|
| Nominal Voltage | 48V |
| Rated Capacity | Nominal Capacity: 120Ah |
| Charging Voltage | 54.8V |
| Charging Method | Constant Current / Constant Voltage |
| Discharge Cut-off Voltage | 34.5V |
| Rated Charging Current | ≤50A |
| Maximum Continuous Charging Current | ≤80A |
| Internal Resistance | <100mΩ |
| Rated Discharge Current | ≤80A |
| Maximum Continuous Discharge Current | ≤120A (not exceeding 1 hour) |
| Overcharge Protection Voltage | 3.65±0.05V (adjustable) |
| Over-discharge Protection Voltage | 2.3±0.01V (adjustable) |
| Overcurrent Protection | Discharge overcurrent value: ≥360A |
| Short Circuit Protection |
Condition: External circuit short, Recovery: Disconnect short circuit |
| Operating Temperature Range | Charge: 0~55°C, Discharge: -20~55°C |
| Storage Temperature Range | Less than 7 days: 20~65°C |
| Weight | Approx. 36kg |
| Dimensions | Customizable |
Product Description:
High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
Application:
1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy
for continuous movement and lifting.
2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).
3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with
minimal charging downtime.
